Bringing Precision to Life with the Trimble X7 Scanner
December 2024At ST+B Engineering, we are always looking for innovative tools that elevate the way we approach design, problem-solving, and project delivery. One of the most transformative additions to our workflow has been the Trimble X7 3D Scanner. This state-of-the-art technology allows us to accurately capture and model existing spaces, delivering precision and efficiency that redefine project outcomes.
Here’s a closer look at how we use the Trimble X7 to benefit our clients and streamline even the most complex projects.
Step 1: Scanning the Room

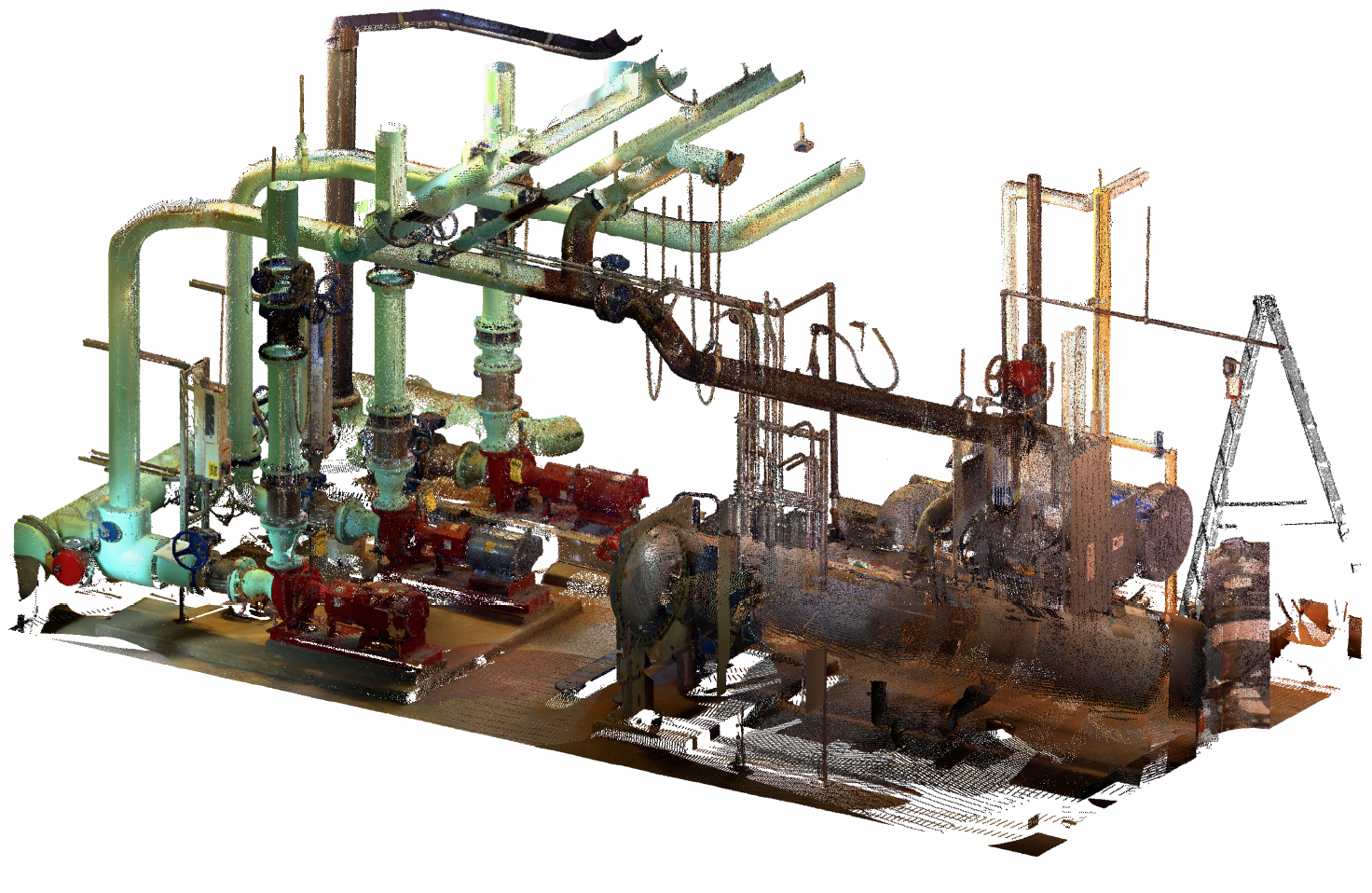

The process begins on-site with the Trimble X7, where we 3D scan the space—whether it’s a mechanical room filled with intricate equipment, a utility space with miles of piping, or any other complex environment. The scanner quickly captures a detailed point cloud, which represents every element in the room with pinpoint accuracy, down to the smallest detail.
What makes this technology so powerful is its ability to collect millions of data points in a short period of time, providing a precise digital representation of the physical space.
Step 2: Turning Scans into Accurate 3-D Models
Once the point cloud data is captured, our team imports it into Revit, a leading building information modeling (BIM) software. This is where the magic happens:

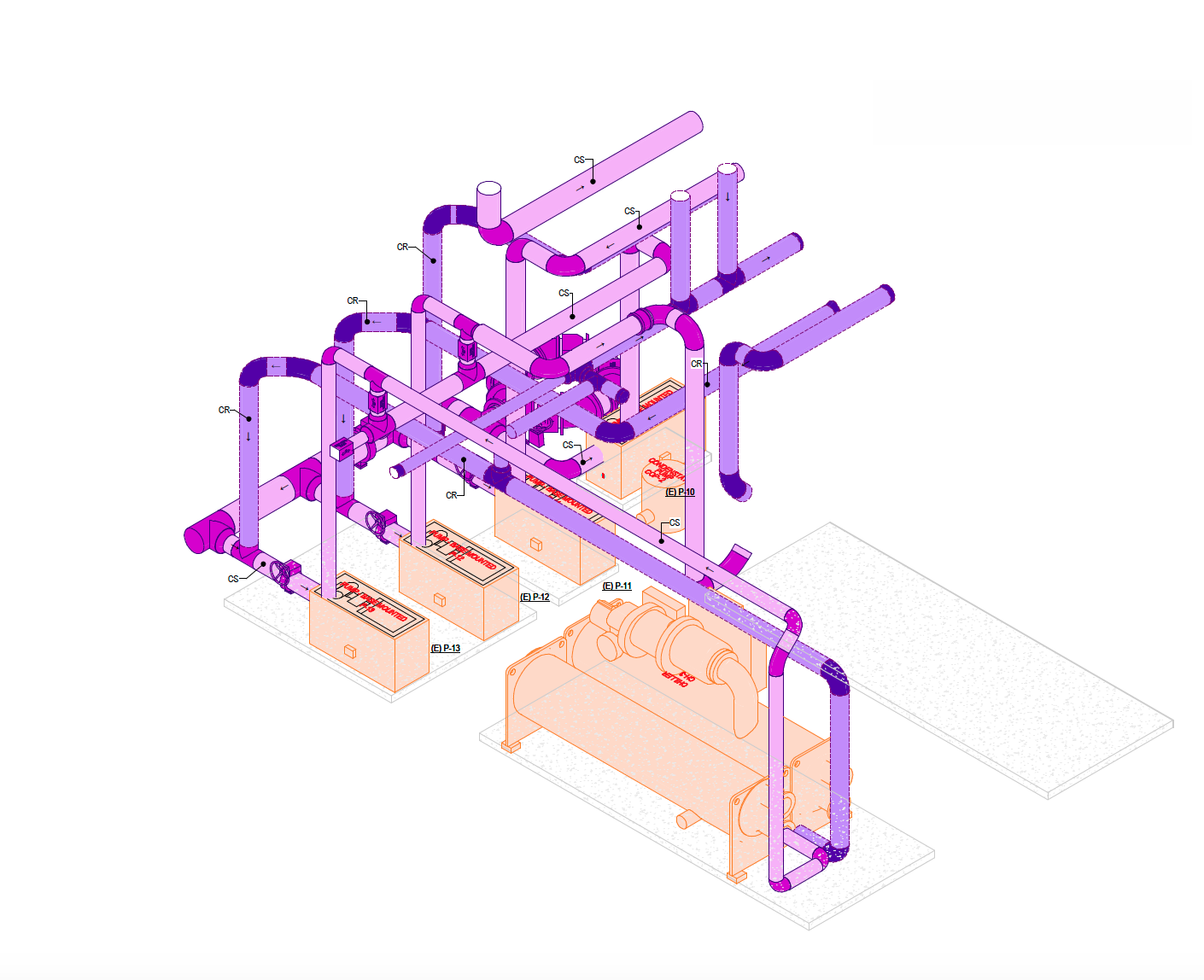

We trace over the scanned data to recreate the room as an accurate 3D model.
Every pipe, duct, structural element, and piece of equipment is carefully modeled, ensuring alignment with the existing space.
The result? A precise digital twin that serves as the foundation for any new design or upgrade.
Whether we’re designing system modifications, planning equipment replacements, or upgrading infrastructure, this model eliminates the guesswork often associated with traditional methods of measurement.
Step 3: Delivering Next-Level Results
The combination of the Trimble X7 and Revit allows us to deliver results that make a real difference:
Ensure Perfect Fit: New designs integrate seamlessly into the existing systems, minimizing clashes and surprises during construction.
Save Time and Reduce Rework: By starting with accurate data, we drastically reduce the need for revisions, saving both time and money for our clients.
Collaborate with Confidence: The detailed 3D models provide a reliable foundation for all project stakeholders, enabling clear communication, informed decision-making, and smoother project execution.
Transforming Projects, One Scan at a Time
At ST+B, we’re proud to incorporate tools like the Trimble X7 scanner into our workflow. It’s not just about adopting the latest technology—it’s about delivering exceptional results for our clients and setting a new standard for precision in engineering.
Whether it’s a small maintenance project or a complex renovation, we ensure every detail is captured, modeled, and delivered with care.
At ST+B, this is a standard part of our service, provided at no additional cost.
